Side Entry Offset Overhangs PCB Magnetic RJ45 Jack With EMI Finger

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ6-B211-RVS2L1T003-1C
Minimum Order Quantity: 3000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 3 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Series: Magnetic RJ45 Jack Gender: Female
Pin: 10P Business Type: Manufacturer
Insulation Resistance: 500MΩ Min Led Option: Green/Yellow,Yellow & Green
Rj45 Connector Speed: 10/100/1000 Base-TX
High Light:

PCB Magnetic RJ45 Jack

,

Overhangs Magnetic RJ45 Jack

,

Offset Magnetic RJ45 Connector


Product Description

Offset / Overhangs PCB Magnetic RJ45 Jack; SMT; With EMI Finger, Side Entry





1. Magnetic RJ45 Jack customized requirements are accepted:



1. With or without transformers

2. With or withour PoE function

3. Customized length of Pin

4. Customized housing color

5. Customized contact area gold plating

6. Customized LED Indicator color

7. Customized Logo printing


 2. Magnetic RJ45 Jack specification:

Offset / Overhangs PCB Magnetic RJ45 Jack; SMT; With EMI Finger, Side Entry
Part Number:  MJ6-B211-RVS2L1T003-1C
Product Family: 1 x 1 Magnetic RJ45 Jack
Overview:  Magnetic RJ45 Jack 1x1 ports
Description:


1x1 ports Magnetic RJ45 Jack, R/A, SMT
Operating temprature range: -40℃-70℃

General- Magnetic RJ45 Jack
Series: 1 x 1 Magnetic RJ45 Jack
Numbers of ports: 1 x 1
Orientation: Side Entry Magnetic RJ45 Jack
Pin type: SMT solder
Positions/ Loaded contacts: 10P8C
Latch: Tab up
LEDs: None
Shielded: None
Jack Height: 12mm
Magnetic: /
Performance category: /
Power over Ethernet(PoE): Non-PoE
Physical - Magnetic RJ45 Jack
Color-Resin: Black
Durability(mating cycles max): 750
Material Metal: Phosphor bronze
Resin: Liquid crystal polymer
Plating mating: Gold over Nickel
Plating termination: Gold Flash
Plating min- mating: 1u"/3u"/6u"/15u"/30u"/50u"  optional
Net Weight: TBA
PCB: FR4
PCB locator: Yes
PCB retention: None
PCB retaining post: T-post
PCB Thickness- Recommended 1.6mm
Packaging type: Tray
Temperature range: -40℃-70℃
Turns Ratio RX: /
Turns Ratio TX: /
Configuration RX: /
Configuration TX: /
RoHS compliant: YES, RoHS AND Halogen-Free
Electrical - Magnetic RJ45 Jack
Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES



3. Magnetic RJ45 Jack Product Image :

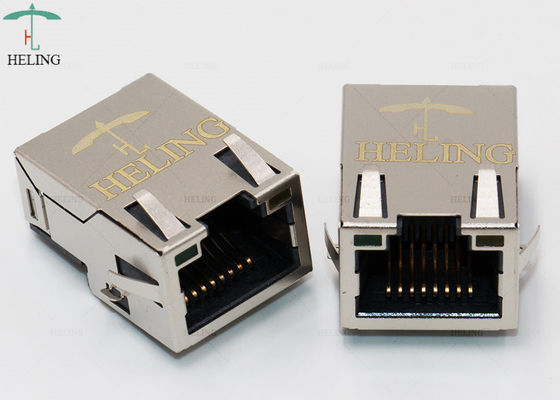

Side Entry Offset Overhangs PCB Magnetic RJ45 Jack With EMI Finger 0







4 FAQ for Magnetic RJ45 Jack


1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :
1. Choose the Magnetic RJ45 Jack you need and send us an inquiry, we will reply in 24 hours.
2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4. Ship your goods by DHL/FedEx/UPS, as your request.
5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.



5  Product Range of Magnetic RJ45 Jack

  • Offset/Overhangs Magnetic RJ45 Jack
  • 100/1000 base - T Integrated Magnetic RJ45 Jack
  • Low Profile SMT Magnetic RJ45 Jack
  • RJ45 Multiple Port Connectors Through Hole Connector
  • Single Port Magnetic RJ45 Jack
  • 1xN 10 Pin RJ45 Connector
  • 2xN 10 Pin RJ45 Connector
  • PoE Magnetic RJ45 Jack
  • RJ45 Lan Jack + USB/HDMI
  • Magnetic RJ45 Jack Ethernet LAN Transformer

Welcome OEM/ODM orders.
