Single Port Tab Up Modular RJ45 Female Connector

Basic Information
Place of Origin: China
Brand Name: DGHELING
Certification: ISO9001 , RoHS , UL , CE , REACH
Model Number: MJ3288-B011-HRN1
Minimum Order Quantity: 2000
Price: Preferential & Competitive
Packaging Details: Tray / Tape & Reel as your request
Delivery Time: Stock or 4 weeks
Payment Terms: T / T, Paypal
Supply Ability: 1,000K Pieces Per Month
Detail Information
Part Number: MJ3288-B011-HRN1 Family: RJ45 Female Panel Mount
Brand Name: HELING Latch Orientation: Tab Up
Positions / Loaded Contacts: 8 Positions 8 Contacts Material: PA 9T
RoHS Compliant: Yes Shielded: Unshielded
High Light:

Modular RJ45 Female Connector


Tab Up RJ45 Female Connector


Modular RJ45 Female Jack

Product Description

Unshielded 8P8C RJ45 Female Connector Right Angle Single Port Modular Jack


Product Specification

  1. Part Number : MJ3288-B011-HRN1

  2. Overview : RJ45 1x1 8P8C Unshielded Modular Jack

  3. Ports configuration : Single port

  4. Port matrix configuration : 1x1

  5. Latch Orientation : Tab up

  6. PCB Mount orientation : Right Angle

  7. PIN Type : THT Solder

  8. LED Indicator : None

  9. Shielded : Unshielded

 10. Jack Hight : 11mm







Electrical Specification


Current rating: 1.5AMPS
Voltage rating: 125V AC
Insulation Resistance: 500MΩ mini
Withstand voltage: 1000V RMS 60Hz
Contact Resistance: 50mΩ Max
Grounding to PCB: YES
Grounding to Panel: YES





Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers.


Our RJ45 female connector are widely used for Telecom, Networking, Security System, smart home, Multi-Media equipment and POS Terminals.

We supply RJ45 Female connectors for more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.


Product Range:

  • Offset/Overhangs PCB RJ45 Jack
  • 100/1000 base - T Integrated Magnetics RJ45 modular jacks
  • Low Profile SMT RJ45 Female Connector
  • Low Profile RJ45 Through Hole Connector
  • Single Port RJ45 Female Connector
  • 1xN Multi-port RJ45 Female Connector
  • 2xN Multi-port RJ45 Female Connector
  • PoE RJ45 Connector
  • Modular jacks + USB/HDMI
  • Ethernet LAN Transformer

Welcome OEM/ODM orders.

Our advantage:
  1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.
  2 > 6 Years Warranty
6 years warranty for all our RJ45 Female Connectors.
  3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.



1. How long can I expect to get the sample and mass order.

For sample order, the delivery time is in 2-3 weeks, and for mass order, the delivery time is in 3-4 weeks.


2. What is your payment terms?

B.30% deposit before production and 70% payment before shipment. T/T, Western Union or Paypal are acceptable. All banking charges outside China are on buyers.


3. How do you ship the goods?

Usually the goods are shipped by FedEx, DHL or UPS. If you have any express account, please let us know.


4. Can you do our designs?

Yes, of course. We have a professional design team and the complete production lines. Just provide the details to us, we will be happy to help you out.


5. How can I order?

1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.

2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment(via T/T, Paypal and L/C is acceptable when total amount is more than US$10,000.)

3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4. Ship your goods by DHL/FedEx/UPS, as your request.

5. Follow-up client usage status regularly and after sales service



Product Image :

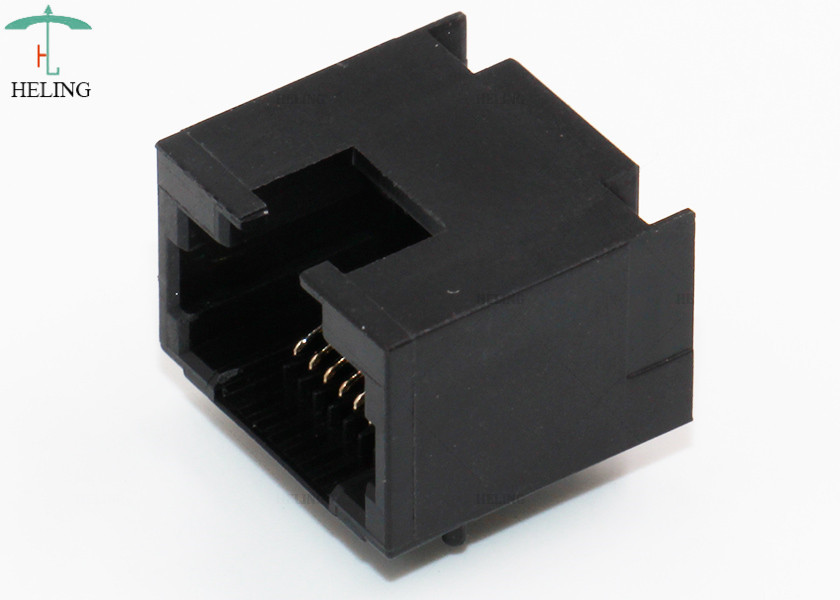

Single Port Tab Up Modular RJ45 Female Connector 0

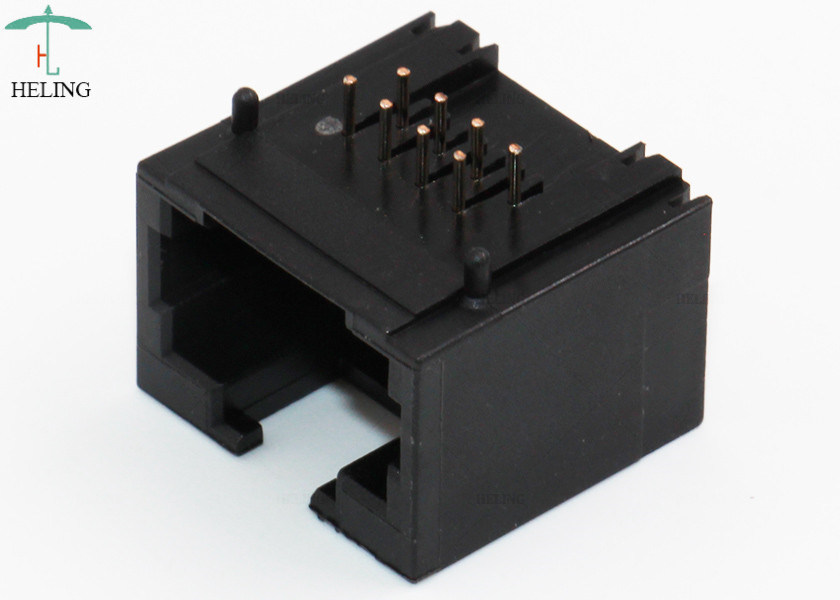

Single Port Tab Up Modular RJ45 Female Connector 1Single Port Tab Up Modular RJ45 Female Connector 2
