| Place of Origin: | China |
|---|---|
| Brand Name: | DGHELING |
| Certification: | ISO9001 , RoHS , UL , CE , REACH |
| Model Number: | MJ5688-B011-GR1 |
| Minimum Order Quantity: | 1000 |
| Price: | Competitive |
| Packaging Details: | Tray / Tape & Reel as your request |
| Delivery Time: | Stock or 4 weeks |
| Payment Terms: | T / T， Paypal |
| Supply Ability: | 1,000K Pieces Per Month |
| Shield: | Yes | Operating Temperature: | -40~85degree |
|---|---|---|---|
| Pin: | 8 | Port: | 1 |
| Application: | PCB | Type: | THT Soldering |
| Highlight: | Shielded 8P8C RJ45 Connectors,Tab Up 8P8C RJ45 Connectors,Right Angled 8P8C Modular Jack |
||

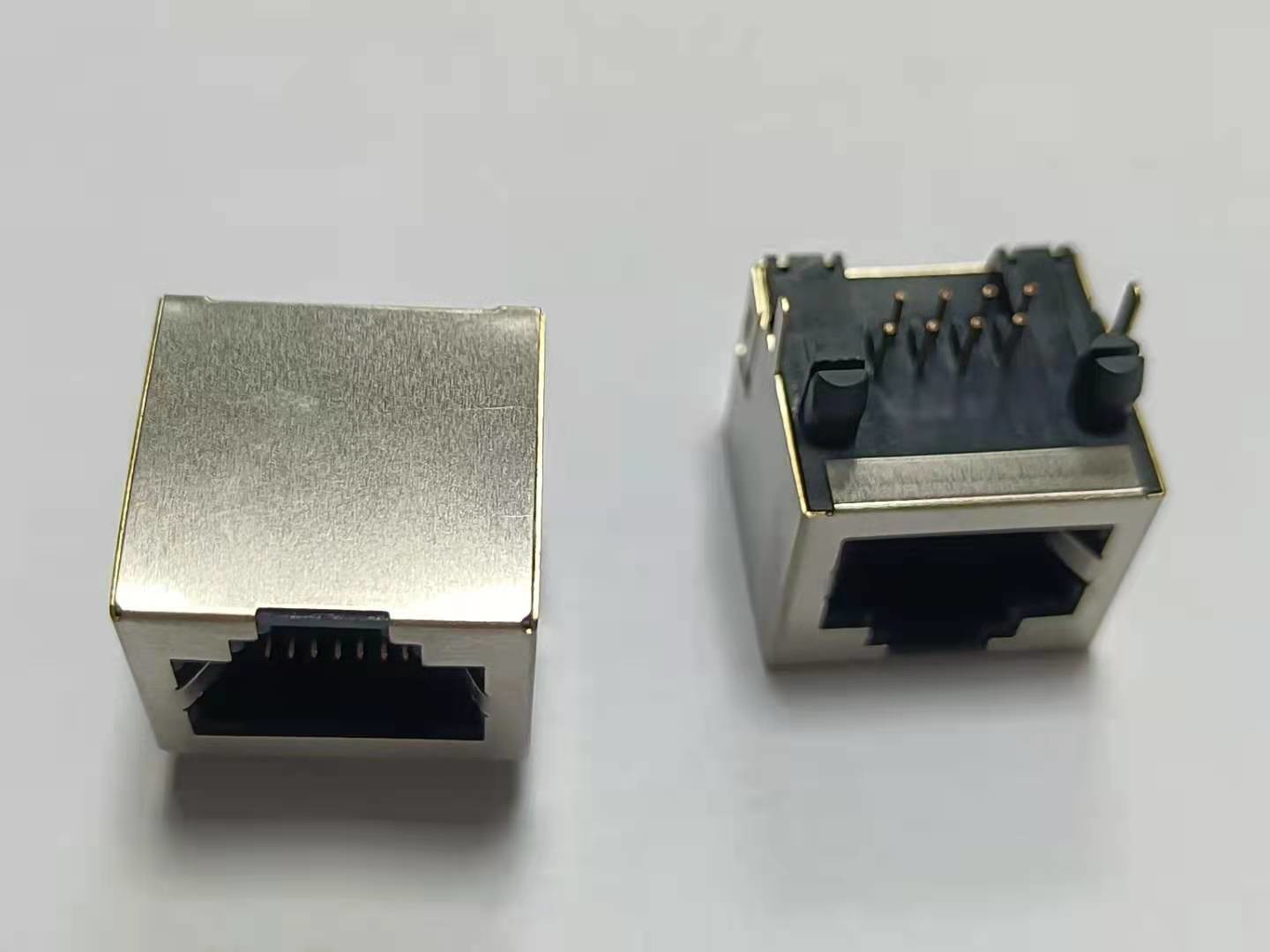

8P8C RJ45 connectors, modular, right angled, tab-up, shielded
Standard modular jacks series
Available with or without LED
8P8C RJ45 connectors, modular, right angled, tab-up, shielded
High performance for maximum EMI suppression
Materials:
Insulator: high-temp nylon flammability rating UL94V-0
Available in black, yellow, blue and red
Contacts: phosphor bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Electrical:
Voltage rating: 125V AC(RMS)
Current rating: 1.5Amp
Contact resistance: 20mΩ max
Insulation resistance: 500MΩ min
Dielectric withstanding voltage: 1000V AC RMS 60Hz, 1 min
Mechanical:
Durability: 750 mating & unmating cycles
Mated retention force: 7.7kgs
Operating temperatures: -40 to 85°C
